Isol-R Micro-grooved Industrial sectional doors

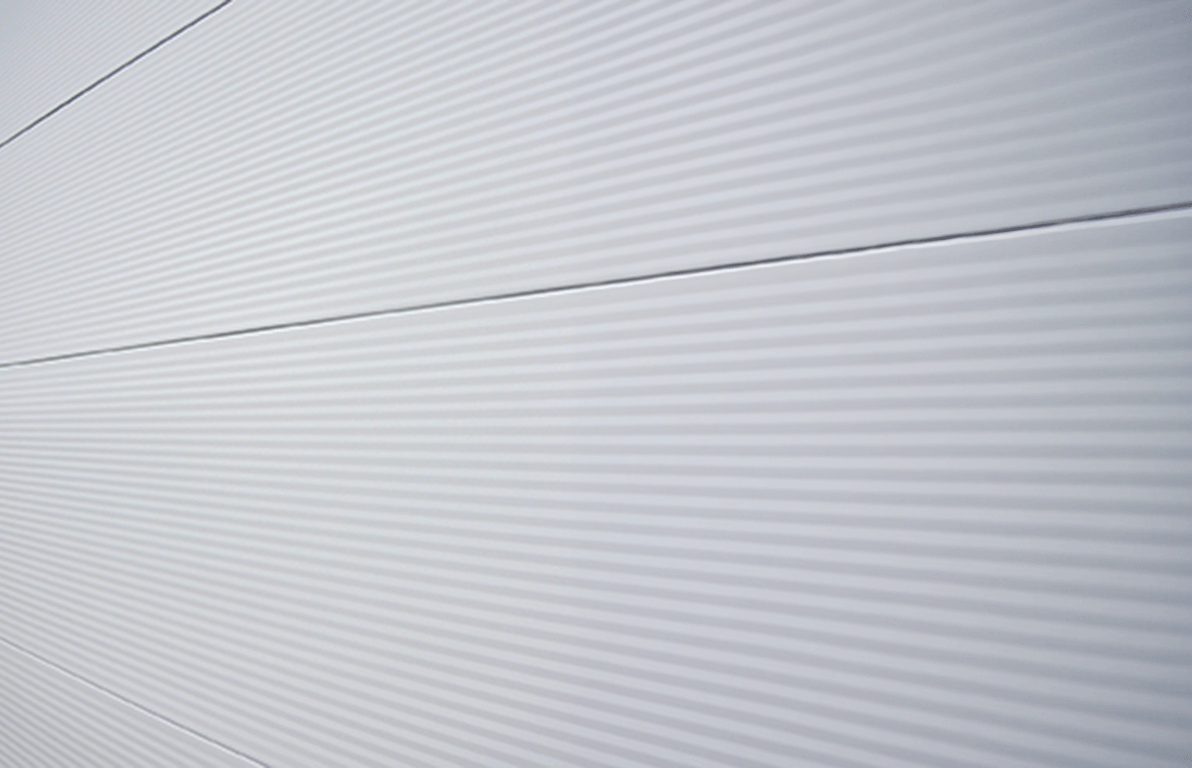

The Isol-R Micro-grooved sectional door is designed to offer maximum thermal and acoustic insulation. It is specifically adapted to workshops, warehouses or industrial premises. Its micro-grooves give it an industrial and contemporary look.
Line Sectional doors with foam panels
Model Isol-R
Material Steel
Type solid, half open work
Warranty 2 years
Target warehouse, industrial building, car dealership, community, handicraft, individual housing
Aspect Micro-grooved
Finish Smooth
Wicket gate With or without
Number of cycles per day 50
Wind class 2 to 4 according to dimensions and options, class 5 on request
Standards and certifications NF EN 13241+A2
Operating mode Press and hold, mixed, pulse, automatic
Options lock, Metal grilles for ventilation, portholes with rounded corners, portholes square corners, wicket door
Portholes With or without
Colors
See full color chart
Min-max width 1500-6000
Min-max height 1560-5500
Price on quotation
For more than 60 years, La Toulousaine has been making your custom residential and industrial closures in France!
Production
French
Warranty up to
25 years
Quality
superior
Bespoke models
and customization
Details
Adjustable side hinge
Holds the rollers in place and protects against external pressure
Spring guard
Ensures that the curtain stops in the event of a spring break
Cable fall protection
Ensures that the curtain is stopped in the event of a cable break
